| Part Number | Download | Circuit |
Type |
Process |
ESD(Yes/No) |
VDS(V) |
VGS(V) |
ID(A) |
VGS(TH)(V) |
RDS(mΩ)@VGS(10V Typ) |
RDS(mΩ)@VGS(10V Max) |
RDS(mΩ)@VGS(4.5V Typ) |
RDS(mΩ)@VGS(4.5V Max) |
Package |
| GPM270NP04LQA |
 |
 |
N+P
|
Trench
|
No
|
-40
|
±20
|
-10
|
-1.6
|
25
|
37
|
33
|
47
|
SOP8 |
| GPM400NP04LNB |
|
 |
N+P
|
Trench
|
No
|
40
|
±20
|
14
|
2.1
|
20
|
36
|
26
|
56
|
PDFN3.3X3.3-8L |
| GPM400NP04LNB |
|
 |
N+P
|
Trench
|
No
|
-40
|
±20
|
-14
|
-1.5
|
46
|
60
|
75
|
98
|
PDFN3.3X3.3-8L |
| GPM560NP04LQA |
|
 |
N+P
|
Trench
|
No
|
40
|
±20
|
6
|
1.7
|
28
|
36
|
38
|
49
|
SOP8 |
| GPM560NP04LQA |
|
 |
N+P
|
Trench
|
No
|
-40
|
±20
|
-5
|
-1.5
|
56
|
88
|
75
|
100
|
SOP8 |
| GPM240NP04LTG |
|
 |
N+P
|
Trench
|
No
|
40
|
±20
|
30
|
1.7
|
14
|
18
|
18
|
27
|
TO-252-4L |
| GPM240NP04LTG |
|
 |
N+P
|
Trench
|
No
|
-40
|
±20
|
-28
|
-1.6
|
24
|
34
|
31
|
47
|
TO-252-4L |
| GPM380NP04LTG |
|
 |
N+P
|
Trench
|
No
|
40
|
±20
|
18
|
1.7
|
17
|
26
|
23
|
39
|
TO-252-4L |
| GPM380NP04LTG |
|
 |
N+P
|
Trench
|
No
|
-40
|
±20
|
-17
|
-2.1
|
42
|
55
|
70
|
86
|
TO-252-4L |
| GPM250NP04LND |
|
 |
N+P
|
Trench
|
No
|
40
|
±20
|
16
|
1.7
|
14
|
20
|
17
|
24
|
PDFN5X6-8L |
| GPM250NP04LND |
|
 |
N+P
|
Trench
|
No
|
-40
|
±20
|
-16
|
-1.6
|
24
|
33
|
29
|
42
|
PDFN5X6-8L |
| GPM100NP04LTG |
|
 |
N+P
|
Trench
|
No
|
40
|
±20
|
50
|
1.6
|
7
|
11
|
9
|
16
|
TO-252-4L |
| GPM100NP04LTG |
|
 |
N+P
|
Trench
|
No
|
-40
|
±20
|
-50
|
-1.6
|
11
|
15
|
15
|
21
|
TO-252-4L |

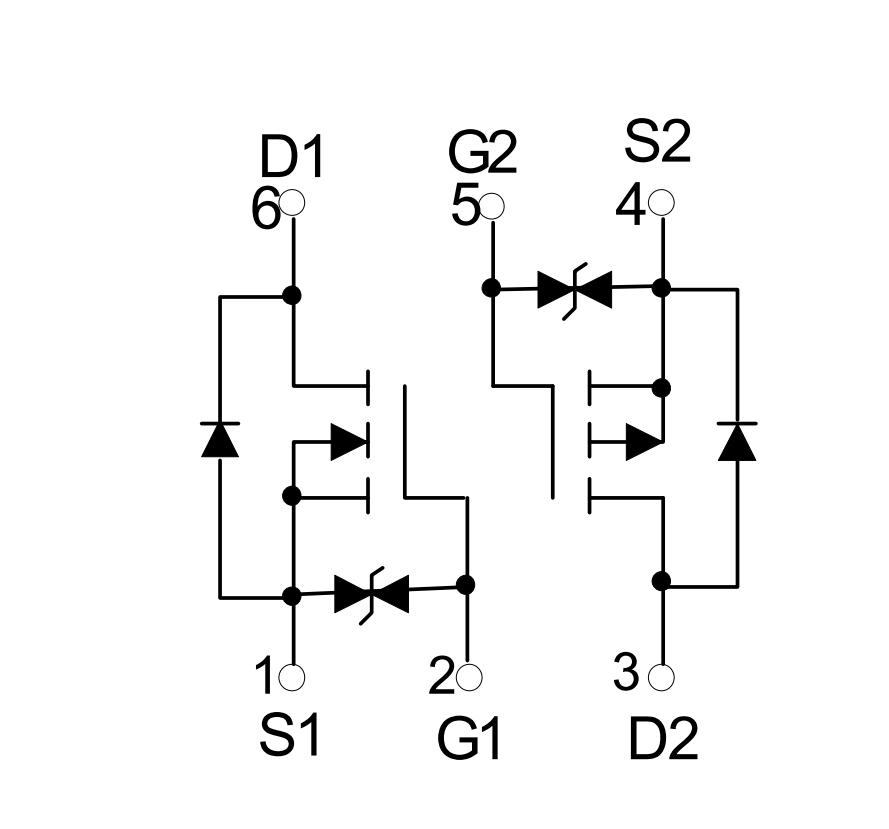

| GP1029SL |
|
 |
N+P
|
Trench
|
Yes
|
60
|
±20
|
0.30
|
1.5
|
1400
|
3000
|
1500
|
4000
|
SOT-563 |
